Motorcycle Petrol Pump Assembly Wiring Motorcycle Petrol Pump Assembly Bolt Holes

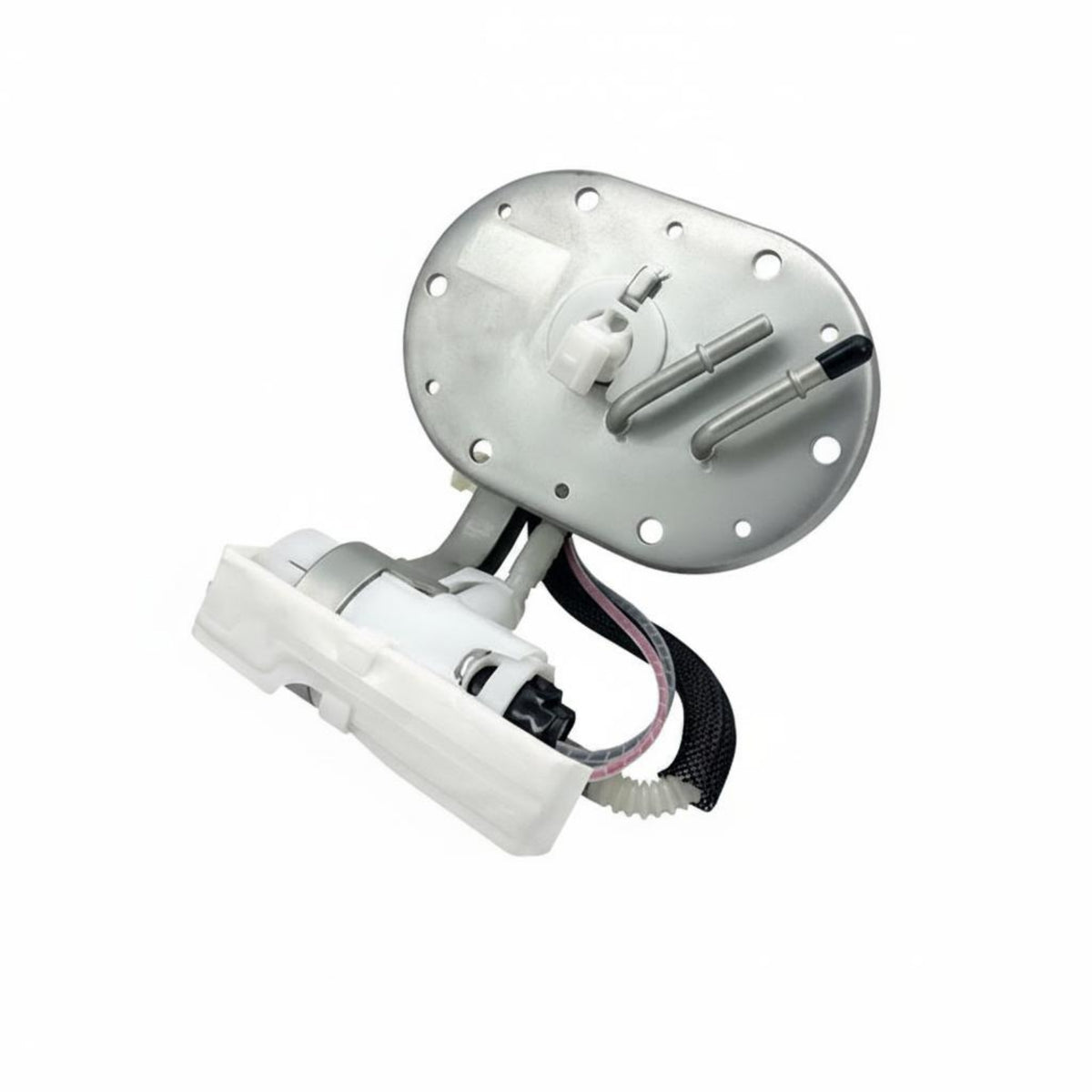

This Motorcycle petrol pump assembly is intended for 300cc model 300 models from 2013 to 2019 motorcycle identified by part number 16700-701-series-701. As a motorcycle part, it combines the pump body, flange, wiring, and connector elements into one assembly, making it easier to match the correct unit for service or replacement.The petrol pump assembly features a silver metal mounting flange with multiple bolt holes, a white pump housing, and a gray curved support section. These visible components give the motorcycle petrol pump assembly a clear, functional structure that fits the needs of the petrol system layout.Attached wiring is included with a black braided shielded sleeve, helping organize the cables while keeping the assembly neatly directed. The unit also shows petrol line connections and white connector pieces, which are important details when checking fitment against the original part.For repairs or maintenance, this Motorcycle petrol pump assembly offers a practical replacement option when the existing unit must be compatible by form and connection style. Its complete assembly design helps simplify installation planning and supports reliable petrol system servicing compatible Motorcycle motorcycles.
